高压平面MOS

平面MOS是指采用平面技术制造的金属-氧化物-半导体场效应晶体管（Metal-Oxide-Semiconductor Field Effect Transistor），简称MOS场效应晶体管。这种技术涉及使用一系列半导体工艺，将晶体管、元件、导线等全部制作在硅平面上，类似于集成电路的制作方式。MOS场效应晶体管由源极、漏极、栅极和连接源漏的沟道组成，其中栅极和沟道之间通过一层非常薄的二氧化硅层实现绝缘。这层二氧化硅层薄至几个纳米，使得栅极能够有效地控制沟道的电导特性。MOSFET（金属-氧化物-半导体场效应晶体管）是大规模及超大规模集成电路中最广泛使用的半导体器件之一，主要用于二进制计算的逻辑电路，并且分为增强型和耗尽型两类。

联系我们

产品说明

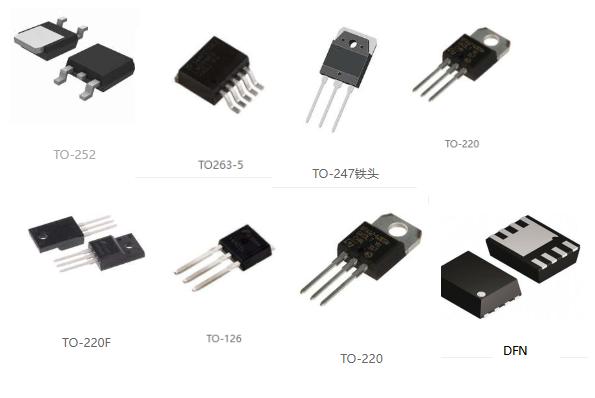

序号	Part-NO	Package Type	ID(A)	VDss[V]	VGS(th)(V)	RDSON（MAX)(Ω)
1	4512F	TO-220F	12	450	2-4	0.52
2	4512D	TO-252	12	450	2-4	0.52
3	4513A	TO-220	13	450	2-4	0.42
4	4N50SD	TO-252 带快恢复	4	500	2-4	3.5
5	4N50D	TO-252	4	500	2-4	3.5
6	5N50A	TO-220	5	500	2-4	1.6
7	5N50F	TO-220F	5	500	2-4	1.6
8	5N50C	TO-251	5	500	2-4	1.6
9	5N50D	TO-252	5	500	2-4	1.6
10	5N50MD	TO-252	5	500	2-4	2.5
11	5N50XD	TO-252	5	500	2-4	2.9
12	5N50BD	TO-252	5	500	2-4	3.2
13	6N50D	TO-252	6	500	2-4	1.4
14	6N50SD	TO-252	6	500	2-4	1.4
15	9N50A	TO-220	9	500	2-4	0.8
16	9N50F	TO-220F	9	500	2-4	0.8
17	9N50C	TO-251	9	500	2-4	0.8
18	9N50D	TO-252	9	500	2-4	0.8
19	9N50EA	TO-220	9	500	2-4	0.75
20	9N50EF	TO-220F	9	500	2-4	0.75
21	9N50EC	TO-251	9	500	2-4	0.75
22	9N50ED	TO-252	9	500	2-4	0.75
23	10N50A	TO-220	10	500	2-4	0.55
24	10N50F	TO-220F	10	500	2-4	0.55
25	10N50C	TO-251	10	500	2-4	0.55
26	10N50D	TO-252	10	500	2-4	0.55
27	11N50A	TO-220	11	500	2-4	0.55
28	11N50F	TO-220F	11	500	2-4	0.55
29	13N50A	TO-220	13	500	2-4	0.36
30	13N50SF	TO-220F	13	500	2-4	0.55
31	13N50S	TO-252	13	500	2-4	0.36
32	13N50EF	TO-220F	13	500	2-4	0.45
33	13N50F	TO-220F	13	500	2-4	0.42
34	13N50HF	TO-220F	13	500	2-4	0.42
35	15N50A	TO-220	15	500	2-4	0.42
36	15N50HF	TO-220F	15	500	2-4	0.42
37	16N50A	TO-220	16	500	2-4	0.32
38	16N50HF	TO-220F	16	500	2-4	0.32
39	18N50EA	TO-220	18	500	2-4	0.3
40	18N50HF	TO-220F	18	500	2-4	0.3
41	20N50A	TO-220	20	500	2-4	0.25
42	20N50HF	TO-220F	20	500	2-4	0.25
43	20N50W	TO-247S	20	500	2-4	0.25
44	22N50A	TO-220	22	500	2-4.5	0.23
45	22N50HF	TO-220F	22	500	2-4.5	0.23
46	22N50W	TO-247S	22	500	2-4.5	0.23
47	28N50A	TO-220	28	500	2-4.5	0.18
48	28N50HF	TO-220F	28	500	2-4.5	0.18
49	28N50W	TO-247S	28	500	2-4.5	0.18
50	2N60A	TO-220	2	600	2-4	3.4
51	2N60F	TO-220F	2	600	2-4	3.4
52	2N60C	TO-251	2	600	2-4	3.4
53	2N60D	TO-252	2	600	2-4	3.4
54	4N60A	TO-220	4	600	2-4	2.8
55	4N60F	TO-220F	4	600	2-4	2.8
56	4N60C	TO-251	4	600	2-4	2.8
57	4N60D	TO-252	4	600	2-4	2.8
58	5N60A	TO-220	5	600	2-4	2.4
59	5N60F	TO-220F	5	600	2-4	2.4
60	5N60C	TO-251	5	600	2-4	2.4
61	5N60D	TO-252	5	600	2-4	2.4
62	7N60A	TO-220	7	600	2-4	1.3
63	7N60F	TO-220F	7	600	2-4	1.3
64	7N60C	TO-251	7	600	2-4	1.3
65	7N60D	TO-252	7	600	2-4	1.3
66	8N60A	TO-220	8	600	2-4	0.78
67	8N60F	TO-220F	8	600	2-4	0.78
68	8N60C	TO-251	8	600	2-4	0.78
69	8N60D	TO-252	8	600	2-4	0.78
70	10N60A	TO-220	10	600	2-4	0.53
71	10N60F	TO-220F	10	600	2-4	0.53
72	10N60HF	TO-220F	10	600	2-4	0.53
73	10N60C	TO-251	10	600	2-4	0.53
74	10N60D	TO-252	10	600	2-4	0.53
75	12N60A	TO-220	12	600	2-4	0.52
76	12N60HF	TO-220F	12	600	2-4	0.52
77	15N60HF	TO-220F	15	600	2-4	0.5
78	20N60HF	TO-220F	20	600	2-4	0.38
79	22N60A	TO-220	22	600	2-4.5	0.35
80	22N60HF	TO-220F	22	600	2-4.5	0.35
81	22N60W	TO-247S	22	600	2-4.5	0.35
82	28N60A	TO-220	28	600	2-4.5	0.3
83	28N60HF	TO-220F	28	600	2-4.5	0.3
84	28N60W	TO-247S	28	600	2-4.5	0.3
85	2N65A	TO-220	2	650	2-4	5
86	2N65F	TO-220F	2	650	2-4	5
87	2N65C	TO-251	2	650	2-4	5
88	2N65D	TO-252	2	650	2-4	5
89	4N65A	TO-220	4	650	2-4	2.8
90	4N65F	TO-220F	4	650	2-4	2.8
91	4N65C	TO-251	4	650	2-4	2.8
92	4N65D	TO-252	4	650	2-4	2.4
93	5N65A	TO-220	5	650	2-4	2.5
94	5N65F	TO-220F	5	650	2-4	2.4
95	5N65C	TO-251	5	650	2-4	2.4
96	5N65D	TO-252	5	650	2-4	2.4
97	7N65AA	TO-220	7	650	2-4	1.4
98	7N65EA	TO-220	7	650	2-4	1.4
99	7N65YA	TO-220	7	650	2-4	1.4
100	7N65EYA	TO-220	7	650	2-4	1.4
101	7N65AF	TO-220F	7	650	2-4	1.4
102	7N65EF	TO-220F	7	650	2-4	1.4
103	7N65YF	TO-220F	7	650	2-4	1.4
104	7N65EYF	TO-220F	7	650	2-4	1.4
105	7N65AC	TO-251	7	650	2-4	1.4
106	7N65EC	TO-251	7	650	2-4	1.4
107	7N65YC	TO-251	7	650	2-4	1.4
108	7N65EYC	TO-251	7	650	2-4	1.4
109	7N65AD	TO-252	7	650	2-4	1.4
110	7N65ED	TO-252	7	650	2-4	1.4
111	7N65YD	TO-252	7	650	2-4	1.4
112	7N65EYD	TO-252	7	650	2-4	1.4
113	8N65MA	TO-220	8	650	2-4	1.2
114	8N65MF	TO-220F	8	650	2-4	1.2
115	8N65MC	TO-251	8	650	2-4	1.2
116	8N65MD	TO-252	8	650	2-4	1.2
117	8N65F	TO-220F	8	650	2-4	1.2
118	10N65A	TO-220	10	650	2-4	0.82
119	10N65F	TO-220F	10	650	2-4	0.82
120	10N65HF	TO-220F	10	650	2-4	0.82
121	10N65C	TO-251	10	650	2-4	0.82
122	10N65D	TO-252	10	650	2-4	0.82
123	12N65A	TO-220	12	650	2-4	0.65
124	12N65F	TO-220F	12	650	2-4	0.65
125	12N65HF	TO-220F	12	650	2-4	0.65
126	15N65HF	TO-220F	15	650	2-4	0.6
127	16N65A	TO-220	16	650	2-4	0.52
128	16N65HF	TO-220F	16	650	2-4	0.52
129	18N65HF	TO-220F	16	650	2-4	0.52
130	20N65HF	TO-220F	20	650	2-4	0.45
131	22N65A	TO-220	22	650	2-4.5	0.4
132	22N65HF	TO-220F	22	650	2-4.5	0.4
133	22N65W	TO-247S	22	650	2-4.5	0.4
134	28N65A	TO-220	28	650	2-4.5	0.35
135	28N65HF	TO-220F	28	650	2-4.5	0.35
136	28N65W	TO-247S	28	650	2-4.5	0.35
137	2N70A	TO-220	2	700	2-4.5	5
138	2N70F	TO-220F	2	700	2-4.5	5
139	2N70C	TO-251	2	700	2-4.5	5
140	2N70D	TO-252	2	700	2-4.5	5
141	4N70A	TO-220	4	700	2-4.5	2.5
142	4N70F	TO-220F	4	700	2-4.5	2.5
143	4N70C	TO-251	4	700	2-4.5	2.5
144	4N70D	TO-252	4	700	2-4.5	2.5
145	7N70A	TO-220	7	700	2-4.5	1.5
146	7N70F	TO-220F	7	700	2-4.5	1.5
147	7N70C	TO-251	7	700	2-4.5	1.5
148	7N70D	TO-252	7	700	2-4.5	1.5
149	10N70A	TO-220	10	700	2-4.5	1
150	10N70F	TO-220F	10	700	2-4.5	1
151	10N70HF	TO-220F	10	700	2-4.5	1
152	12N70A	TO-220	12	700	2-4.5	0.82
153	12N70F	TO-220F	12	700	2-4.5	0.82
154	12N70HF	TO-220F	12	700	2-4.5	0.82
155	4N80D	TO-252	4	800	2-4	3.8
156	4N80F	TO-220F	4	800	2-4	3.8
157	6N80F	TO-220F	6	800	2-4	2.3
158	7N80F	TO-220F	7	800	2-5	1.8
159	8N80HF	TO-220F	9	800	2-4	1
160	10N80HF	TO-220F	10	800	2-5	0.75
161	12N80HSF	TO-220F	10	800	2-5	0.73
162	14N80N	TO-247	14	800	2-4	0.72
163	27N80N	TO-247	27	800	2-5	0.35
164	3N90D	TO-252	3	900	2-5	4.75
165	3N90F	TO-220F	3	900	2-5	4.75
166	4N90D	TO-252	4	900	2-5	4.8
167	4N90F	TO-220F	4	900	2-5	4.8
168	6N90F	TO-220F	6	900	2-5	1.6
169	9N90F	TO-220F	9	900	2-5	1.35
170	9N90AF	TO-220F	9	900	2-4	1
171	12N90N	TO-247	12	900	2-4	1
172	12N90W	TO-247S	12	900	2-4	1
173	18N90N	TO-247	18	900	2-4	0.78
174	18N90W	TO-247S	18	900	2-4	0.78
175	24N90N	TO-247	24	900	2-5	0.42
176	24N90W	TO-247S	24	900	2-5	0.42
177	1N100F	TO-220F	0.5	1000	2-4	55
178	2N100D	TO-252	2	1000	2-4	8.8
179	4N100D	TO-252	4	1000	2-4	2.5
180	4N100F	TO-220F	4	1000	2-4	2.5
181	6N100F	TO-220F	6	1000	2-5	2.3
182	9N100F	TO-220F	9	1000	2-4	1.5
183	10N100F	TO-220F	10	1000	2-5	1.25
184	13N100F	TO-220F	13	1000	2-5	1.4
185	24N100N	TO-247	24	1000	2-5	0.45
186	3N120D	TO-252	3	1200	2-5	8
187	3N120F	TO-220F	3	1200	2-5	8
188	10N120F	TO-220F	10	1200	2-5	4.2
189	10N120AF	TO-220F	10	1200	2-5	1.9
190	3N150F	TO-220F	3	1500	2-5	8.2
191	3N150V	TO-3PH	3	1500	2-5	8.2
192	9N150N	TO-247	9	1500	2-5	4
193	11N150N	TO-247	11	1500	2-5	3.7
194	20N65N	TO-247	20	650	2-4	0.36
195	40N50N	TO-247	40	500	2-4	0.11
196	30N50N	TO-247	30	500	2-4	0.22
197	25N50N	TO-247	25	500	2-4	0.26
198	50215SG	PDFN5*6	5	500	2-4	1.8
199	50221G	PDFN5*6	5	500	2-4	2.1
200	50232G	PDFN5*6	5	500	2-4	3.2
201	20N65Q	TO-3PB	20	650	2-4	0.36
202	9N90Q	TO-3PB	9	900	3-5	1.6
203	16N65E	TO-263	16	650	2-4	0.5
204	12N65E	TO-263	12	650	2-4	0.7
205	7N65EE	TO-263	7	650	2-4	1.35
206	5N65EE	TO-263	5	650	2-4	2.8
207	740F	TO-220F	10	400	2-4	0.53
208	150N15N	TO-247	157	150	2.5-4.5	0.0062
209	25N50W	TO-247S	25	500	2-4	0.26
210	28N50Q	TO-3PB	28	500	2-4	0.22
